Thin C64 Ultimate Console Utility button membrane

These buttons are for the optional utility connector found on the motherboard of the C64 Ultimate. The buttons are "special", "menu" and "reset" and can be connected any way you choose so you can assign your favourite colour to the function you require. This button set is made from a very thin self adhesive membrane so it can be attached to any suitable location on the case of your C64U.
It is also supplied with an extension cable to give more flexibility with mounting options.

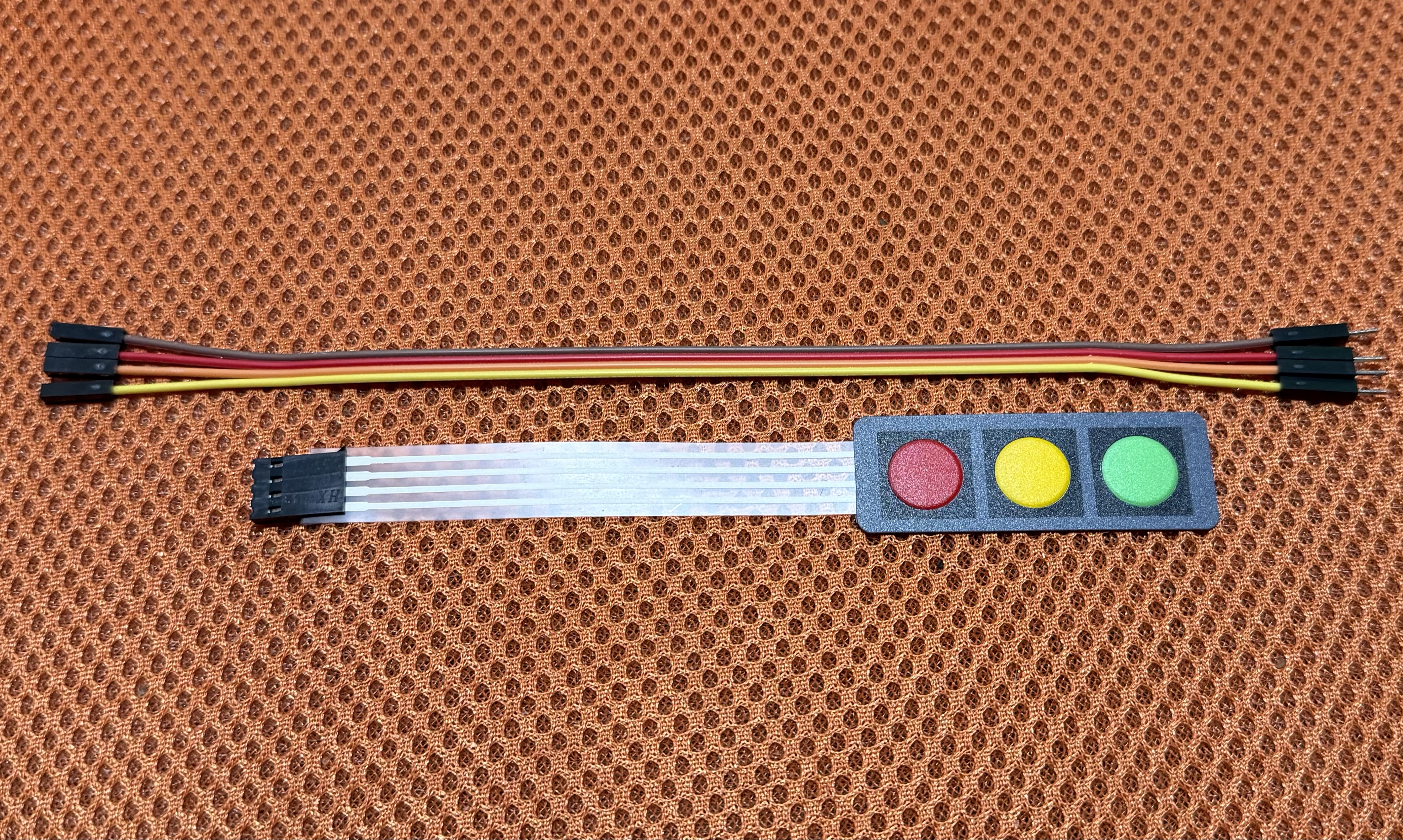

Using the photo as a guide the pins are:
1 (from the top). Green button
2. Yellow button
3. Red button
4. Ground

To fit simply connect pin 4 to the ground pin of the utility header and the other 3 connectors to the pins labelled left middle and right. You can connect these in any order depending on your preference.

Then find a suitable location on your C64U, peel off the backing paper and stick the buttons on.

Thats it. Enjoy!
